The LT-1180W-10 is a photoelectric proximity switch with an operating distance of 40 to 600 mm and an LED light source. Its operating voltage range is 12 to 36 volts.
The LTO-1180W-100 is a photoelectric proximity switch with an integrated lateral light‑emitting head and a robust metal housing. It offers a long adjustable operating distance of 40 … 600 mm, high switching frequency of up to 1000 Hz, and status indication via two built‑in LEDs (additional 4‑hole LED on some connectors). The device is supplied with a potentiometer for sensitivity adjustment and features an IP67 protection class.

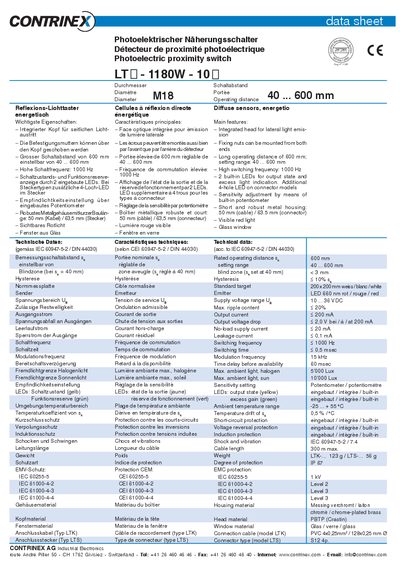

The datasheet lists the technical data required for integration, including supply voltage range (10 … 36 VDC), output current (<200 mA), switching time (<0.5 ms), and environmental limits (‑25 °C … +55 °C). Wiring diagrams, part numbers for cable and connector variants, and safety notices are also included. This manual is written in German.
| Operating distance | 40 … 600 mm |
|---|---|
| Switching frequency | ≤ 1000 Hz |
| Switching time | < 0.5 ms |
| Supply voltage | 10 … 36 VDC |
| Output voltage drop at 200 mA | < 2.0 V |
| Protection class | IP67 |
| Maximum cable length | 300 m |
The operating distance can be set from 40 mm up to 600 mm.
The switch can operate at frequencies up to 1000 Hz.
It works with a supply voltage between 10 VDC and 36 VDC.
Yes, it has an IP67 protection rating.
