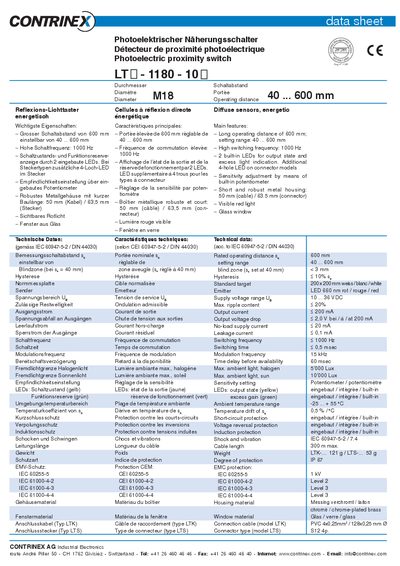

This PDF file is the datasheet of LT-1180-10 photoelectric proximity switch produced by CONTRINEX AG
The LTO-1180-100 is a photoelectric proximity switch with a robust metal housing and a visible red indicator. It offers a long adjustable operating distance from 40 mm up to 600 mm and a high switching frequency of up to 1000 Hz. Two built‑in LEDs indicate output state and functional reserve, and sensitivity can be set via an integrated potentiometer.
Technical data include supply voltage 10‑36 VDC, output current up to 200 mA, IP67 protection, and compliance with IEC 60947‑5‑2 / DIN 44030. Mechanical dimensions, wiring diagrams and part numbers for cables and connectors are also provided. This manual is written in German.
| Operating distance | 40 mm … 600 mm |
|---|---|
| Maximum switching frequency | ≤ 1000 Hz |
| Supply voltage range | 10 VDC … 36 VDC |
| Output voltage drop at 200 mA | < 2.0 V |
| Switching time | < 0.5 ms |
The switch can detect objects up to 600 mm away, with an adjustable range from 40 mm to 600 mm.
It operates at a switching frequency of up to 1000 Hz.
The device works with a supply voltage between 10 VDC and 36 VDC.
