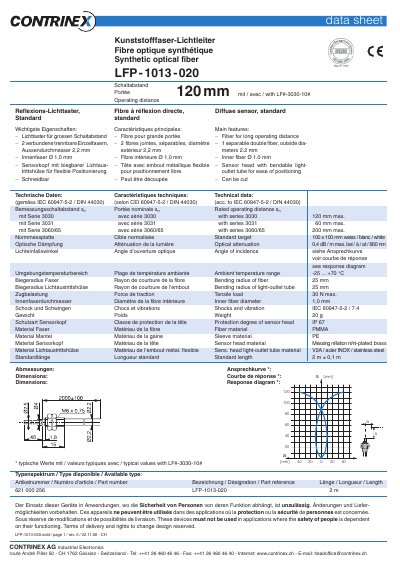

This document is a plastic optical fiber sensor product data sheet, which provides detailed information about the product characteristics, including operating distance, outer diameter, inner diameter, head, etc.
The LFP-1013-020 is a synthetic optical fiber sensor designed for long‑range detection. It features a separable double‑fiber construction with a 2.2 mm outer diameter and a 1.0 mm inner fiber, and a flexible metal outlet tube for easy positioning.
Key specifications include a maximum operating distance of 120 mm, temperature range from –25 °C to +70 °C, IP67 protection, tensile load up to 30 N, and a standard length of 2 m. The device must not be used in safety‑critical applications where human safety depends on its operation. This manual is written in German.
| Outer fiber diameter | 2.2 mm |
|---|---|
| Inner fiber diameter | 1.0 mm |
| Maximum operating distance | 120 mm |
| Tensile load | 30 N max. |
The fiber can operate up to 120 mm.
Yes, the fiber can be cut.
It must not be used in applications where safety of people depends on its functioning.
