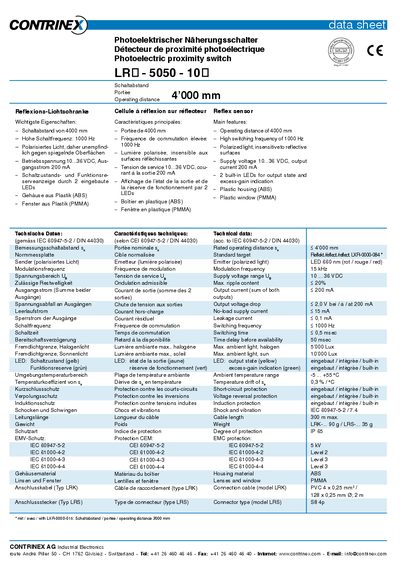

This document introduces a photoelektrischer Näherungsschalter product from Contrinex AG Industrial Electronics. The product features a 4000mm operating distance, a high switching frequency of 1000Hz, polarized light that is insensitive to reflective surfaces, a 10.36 VDC supply voltage, and a 200 mA output current. Additionally, the product has 2 built-in LEDs for indicating the output state and excess-gain. The housing is made of ABS plastic and the window is made of PMMA plastic.
The LR-5050-10 is a photoelectric proximity switch with polarized light that provides reliable detection over a 4000 mm operating distance. It features a high switching frequency of 1000 Hz, a supply voltage range of 10 … 36 VDC, and an output current of 200 mA. Two built‑in LEDs indicate the output state and excess‑gain condition.
Technical data are presented according to IEC 60947‑5‑2 and DIN 44030, including EMC protection, short‑circuit and polarity reversal safeguards, and an IP65 protection class. The device is housed in an ABS plastic body with a PMMA window and is supplied with LRK‑type connection cables and LRS‑type connectors. This manual is written in German.
| Operating distance | 4000 mm |
|---|---|
| Switching frequency | 1000 Hz |
| Supply voltage | 10…36 VDC |
| Output current | 200 mA |
| Built‑in LEDs | 2 |
The LR-5050-10 can detect objects up to 4000 mm away.
It operates from 10 VDC to 36 VDC.
The device switches at up to 1000 Hz.
Two LEDs are built in to indicate output state and excess‑gain.
