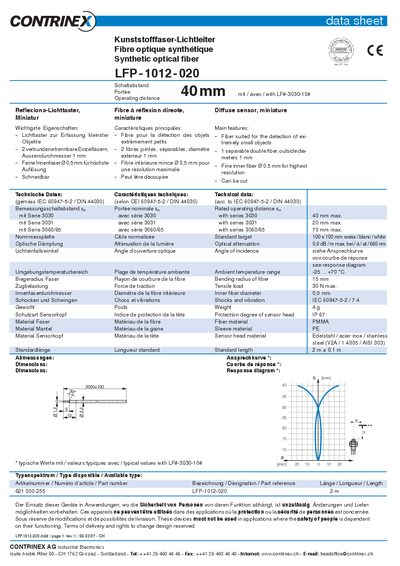

This is a data sheet of optical fiber, introducing the characteristics of optical fiber.
The LFP-1012-020 is a synthetic optical fiber designed for detecting extremely small objects. It features a separable double‑fiber construction with a 1 mm outer diameter and a fine inner fiber of 0.5 mm for high resolution, and it can be cut to length as needed.
Technical data are provided according to IEC 60947‑5‑2 / DIN 44030, including a maximum operating distance of 40 mm, ambient temperature range from –25 °C to +70 °C, IP67 protection, and material details such as PMMA fiber, PE sleeve, and stainless‑steel sensor head. This manual is written in German.
| Maximum operating distance | 40 mm |
|---|---|
| Maximum bending radius | 20 mm |
| Tensile load | 30 N |
| Sensor head material | Stainless steel |
The maximum operating distance is 40 mm.
The fiber can withstand up to 30 N of tensile load.
