This product is a liquid level detection optical fiber sensor, which can detect the level of liquid in contact state, and has waterproof, dustproof and anti-corrosion properties.

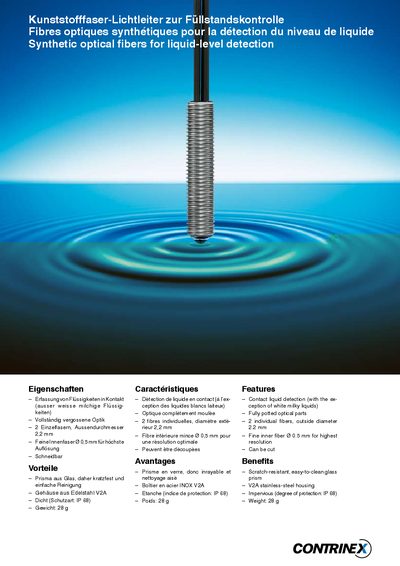

The LFP-1010-020 is a fully potted synthetic optical fiber sensor designed to detect liquids in direct contact, except white milky liquids. It features two individual fibers (outer diameter 2.2 mm, inner fiber 0.5 mm) housed in a stainless‑steel V2A enclosure with a glass prism, offering scratch‑resistance and easy cleaning.
Technical data include an ambient temperature range of –25 °C to +70 °C, IP 68 protection, a tensile load capacity of 30 N, and a weight of 28 g. The sensor complies with IEC 60947‑5‑2 / DIN 44030 standards and can be cut to length as needed. This manual is written in German.
| Ambient temperature range | -25 ... +70 °C |
|---|---|
| Fiber bending radius | 25 mm |
| Outside fiber diameter | 2.2 mm |
| Tensile load | 30 N max. |
| Inner fiber diameter | 0.5 mm |
| Weight | 28 g |
| Protection degree | IP 68 |
| Fiber material | PMMA |
| Sleeve material | PE |
The sensor operates from –25 °C up to +70 °C.
The sensing head has an IP 68 protection rating.
Yes, the fiber can be cut as needed.
The sensor weighs 28 g.
