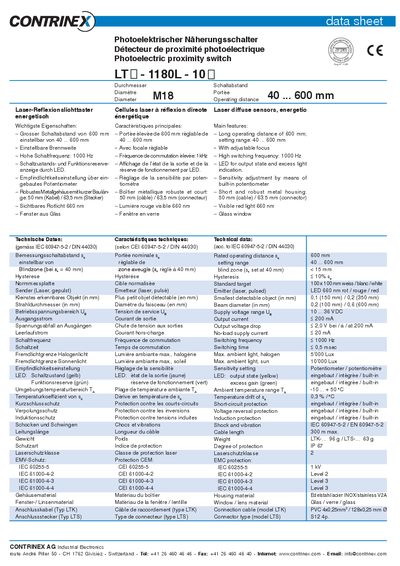

This document describes the technical data and characteristics of the photoelectric proximity switch manufactured by Contrinex AG Industrial Electronics. The product is a sensor used for detecting object distance and presence, with a large detection range and high accuracy.
The LTO‑1180L‑100 is a photoelectric proximity switch with a robust metal housing, adjustable focus and a visible red LED (660 nm). It offers a long operating distance up to 600 mm, high switching frequency (up to 1 kHz) and built‑in potentiometer for sensitivity adjustment.
The datasheet provides full technical data, including supply voltage (10‑36 VDC), output current (<200 mA), switching time (<0.5 ms), ambient light limits (5 000 lux halogen, 10 000 lux sunlight), IP67 protection and compliance with IEC 60947‑5‑2 and IEC 60255‑5 standards. This manual is written in German.
| Operating distance | 40 … 600 mm |
|---|---|
| Supply voltage range | 10 – 36 VDC |
| Output voltage drop at 200 mA | < 2.0 V |
| Switching frequency | ≤ 1000 Hz |
| Switching time | < 0.5 ms |
| LED wavelength | 660 nm (red) |
The switch can detect objects up to 600 mm away, with an adjustable range from 40 mm to 600 mm.
It operates from 10 VDC up to 36 VDC.
The device can switch at frequencies up to 1000 Hz.
The indicator LED emits visible red light at 660 nm.
