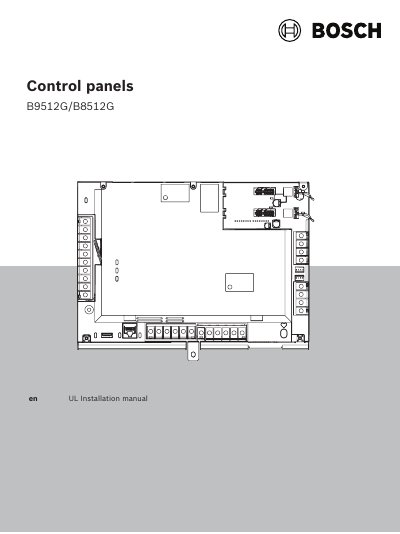

Installation instructions for Bosch Security Systems B9512G and B8512G control panels, covering enclosure setup, wiring, power supply, and module connections.
This manual provides installation instructions for the Bosch Security Systems B9512G and B8512G control panels. It covers system overview, parts lists, and specific procedures for installing the enclosure and the control panel itself, including earth grounding and ground fault detection.
| Number of users (B9512G) | 2000 |
|---|---|
| Total number of doors (B9512G) | 32181 |
| Number of areas (B9512G) | 32 |
| Number of outputs (B9512G) | 599 |
| Number of on-board Ethernet ports | 1 |
Manufacturing dates can be found by visiting the Bosch Security Systems website and referring to the serial number on the product label.
The manual uses Notices for important operational notes, Cautions for situations causing minor or moderate injury, and Warnings for situations causing death or serious injury.
