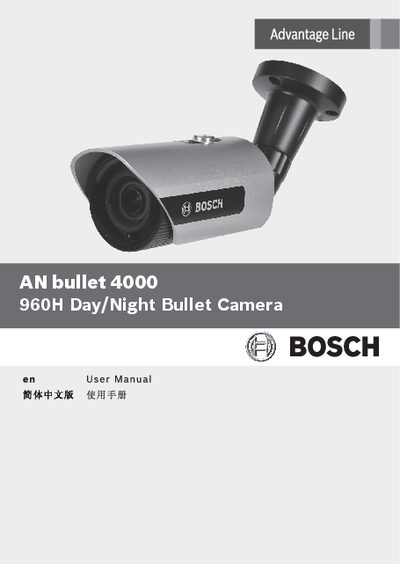

Bosch Security Systems 960H Day/Night Bullet Camera User Manual

About this manual

The document serves as a comprehensive guide for the Bosch Security Systems 960H Day/Night Bullet Camera. It outlines essential features such as ultra-high resolution (960H), True Day/Night capabilities, and vandal resistance (IK08). The manual details the included components and provides a visual breakdown of camera parts including the lens, housing, and mounting bracket.

What's inside

• Cautions
• Important safety instruction
• Features
• Components
• Camera parts
• Installation
• OSD menu structure
• Specification

Frequently asked questions

What power supply is recommended for the camera?

A regulated DC12V 300mA power supply is recommended for the best picture and most stable operation.

What is the maximum load the mounting surface must support?

The mounting surface must be capable of supporting a maximum load of 4 kg (8.82 pounds).

What are the dimensions of the terminal block connector?

The terminal block connector measures 2.6x3.2 mm (0.1x0.12 in).
