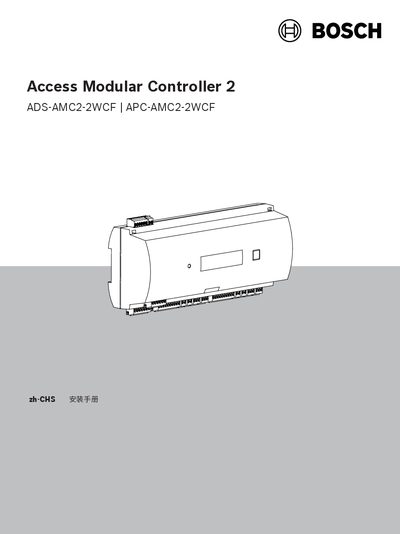

Bosch Access Modular Controller 2 ADS-AMC2-2WCF Installation Manual

Installation, configuration, and troubleshooting guide for the Bosch Access Modular Controller 2 (ADS-AMC2-2WCF) access control device.

Brand: Bosch Security Systems
Document type: User Manual
Language: Chinese
Pages: 56
File format: PDF
File size: 2.7 MB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 8C99B2D39ED2B74DB32612D2A6341D3E
PDF: Bosch Access Modular Controller 2 ADS-AMC2-2WCF Installation Manual PDF

About this manual

This manual provides detailed instructions for installing, configuring, operating, and troubleshooting the Bosch Access Modular Controller 2. The device supports up to two Wiegand readers and features RS-485 and Ethernet interfaces for independent access decision-making and event logging.

The document covers physical installation steps, including mounting on a DIN rail, cabling connections for power, Ethernet, RS-485, and relay outputs, as well as grounding requirements. It also details the operation of the LCD display, DIP switch settings, and firmware updates. This manual is written in Chinese.

What's inside

Safety
Product Overview
Installation
Cabling
Operation
UL Requirements
Troubleshooting
Service and Repair
Technical Specifications

Specifications

Dimensions (H x W x D)	232mm x 90mm x 63mm
Weight	503g
Power Supply Range	10 VDC to 30 VDC
Operating Temperature	0 °C to +50 °C
Relay Output Max Voltage	30 VDC

Frequently asked questions

How often should the backup battery be replaced?

It is recommended to replace the battery every 8 years to avoid premature voltage drop errors.

What type of flash memory card does the controller use?

The controller uses a removable 2 GB CompactFlash (CF) card for storing user and event data.

What is the maximum cable length supported by the Wiegand reader interface?

The cable length must not exceed 90 meters for 24 AWG or 150 meters for 22 AWG.
