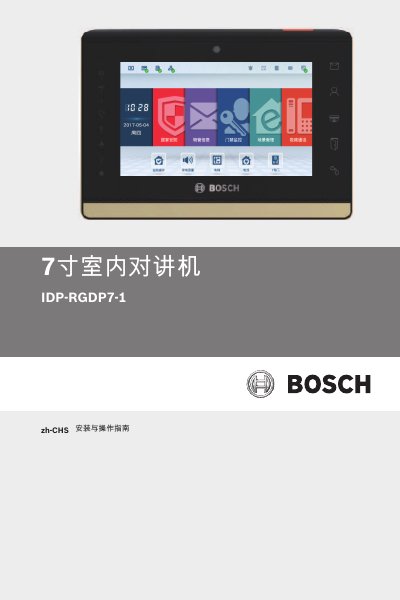

This manual provides installation, operation, and setup instructions for the Bosch Security Systems IDP-RGDP7-1 7-inch indoor intercom unit.
The Bosch Security Systems IDP-RGDP7-1 is a 7-inch indoor intercom unit featuring a capacitive touch screen running on Android 4.4. It supports bidirectional audio-video communication, video surveillance, and various security functions such as home and away arming modes. The device connects to a Central Management System (CMS) for network management and parameter configuration. This manual is written in Chinese.
| Screen Size | 7 inch |
|---|---|
| Operating System | Android 4.4 |
| Processor | ARM Dual-core A9 1G |
| Memory | 512M/DDR3, 8G internal flash |
| Storage Support | SDHC card (max 32G) |
| Resolution | 1024*600 pixels |
| Camera Resolution | 1.0 megapixel HD |
| Power Supply | DC 24V (±2V) |
| Operating Temperature | -10°C ~ +60°C |
| Dimensions | 217.4mm x 152.2mm x 17.5mm |
| Weight | 500g |
| Security Zones | 8 zones EOL |
The device supports SDHC cards with a maximum capacity of 32GB.
No, the product does not have waterproof performance and should be kept in a dry environment.
The device requires a DC 24V power supply with a tolerance of ±2V.
The device has a built-in 8-zone EOL professional anti-theft circuit.
