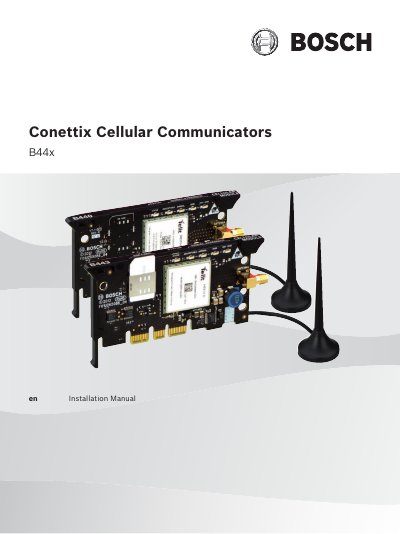

Bosch Security Systems Conettix B44x Cellular Communicator Installation Manual

About this manual

This manual provides installation instructions for the Conettix Plug-in Cellular communication modules, specifically the B44x series. It details component locations and offers step-by-step workflows for inserting SIM cards, installing antennas, and mounting the communicator into control panels or interface modules. Important safety precautions regarding power removal are included to prevent equipment damage.

What's inside

• Cellular module introduction
• Component overview
• Insert the SIM card
• Install the antenna
• Install the communicator
• Remove the communicator
• Diagnostic LED descriptions
• Activating the B440-C/B441-C
• Specifications

Frequently asked questions

What must be done before connecting the communicator to power?

You must remove all AC and battery power before making any connections.

How is a SIM card installed into the module?

Slide the die-cut SIM card into the holder with the gold contact side against the module.

How do you secure a communicator installed in a control panel?

Push the module into place until the retention clip snaps closed.
