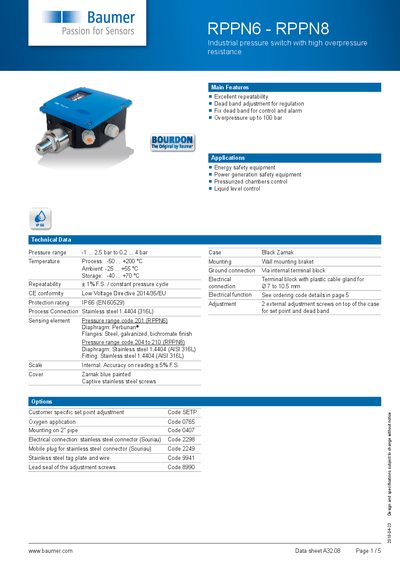

Technical data sheet for the Baumer RPPN6 and RPPN8 industrial pressure switches featuring high overpressure resistance and adjustable dead bands.
This datasheet describes the Baumer RPPN6 and RPPN8 industrial pressure switches, which are designed with high overpressure resistance up to 100 bar. Key features include excellent repeatability, adjustable or fixed dead bands for regulation and control, and suitability for energy and power generation safety equipment. The switches utilize a flexible sensing element to actuate a microswitch via a lever mechanism.
| Overpressure resistance | up to 100 bar |
|---|---|
| Process temperature range | -50 ... +200 °C |
| Ambient temperature range | -25 ... +55 °C |
| Repeatability | ± 1% F.S. |
| Protection rating | IP 66 |
| Process connection material | Stainless steel 1.4404 (316L) |
| Weight | 2.4 kg |
The switch has an overpressure resistance of up to 100 bar.
Yes, the dead band can be adjusted for regulation or fixed for control and alarm applications.
The process temperature range is from -50 to +200 °C.
