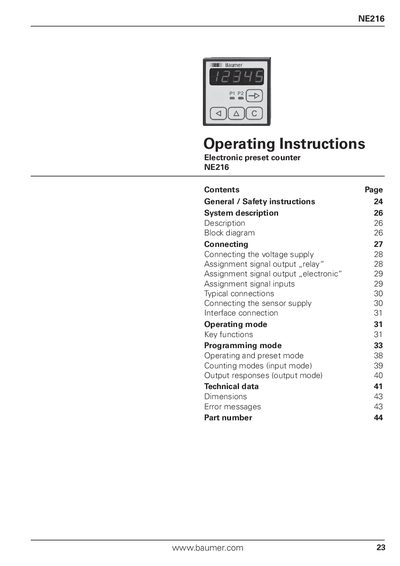

Operating instructions for the Baumer NE216 electronic preset counter, covering safety, connections, programming, and technical data.
This document serves as the operating manual for the Baumer NE216 electronic preset counter. It details the device's description, including a 5-digit preset counter with two settings and an 8-digit totalizer LED display. The manual provides instructions for connecting the voltage supply, signal outputs (relay and electronic), signal inputs, and sensor supply.
| Display | 5-digit preset counter with 2 settings, 8-digit totalizer LED display |
|---|---|
| Voltage supply (AC) | 24/48 VAC (50/60 Hz), 85...265 VAC (50/60 Hz) |
| Voltage supply (DC) | 12...30 VDC |
| Counting rate | 3 Hz, 25 Hz or 10 kHz |
| Interface | RS485 |
Yes, the contacts 7 to 10 can be triggered either by PNP or NPN sensors, selected in programming line 33.
The counting rate is determined in programming lines 31 and 32, with a range between 3 Hz, 25 Hz or 10 kHz.
