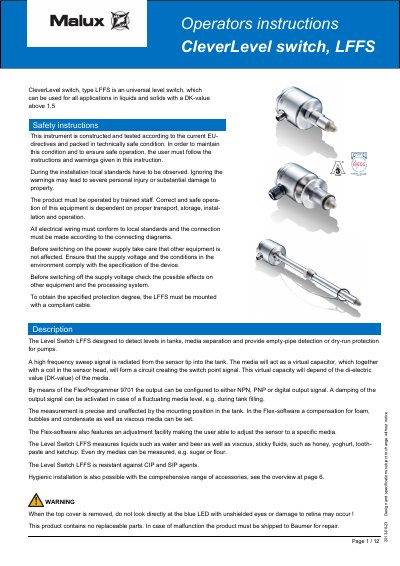

This manual covers the installation, operation, and configuration of the Baumer CleverLevel LFFS level switch for detecting liquid levels in tanks.
The Baumer CleverLevel LFFS is a universal level switch designed to detect levels in tanks, media separation, and provide empty-pipe detection or dry-run protection for pumps. It operates by radiating a high-frequency sweep signal from the sensor tip into the tank, where the media acts as a virtual capacitor to create a switch point signal. The device measures various liquids, viscous fluids like honey or ketchup, and even dry media such as sugar or flour.
| Power supply | 12.5...36 VDC |
|---|---|
| Max current consumption | 35 mA max. |
| Output types | PNP, NPN or Digital |
| Max output current | 50 mA |
| Mounting torque (Sliding connection) | 25...30 Nm |
The Level Switch LFFS measures liquids such as water and beer, viscous fluids like honey or ketchup, and dry medias such as sugar or flour.
The max. ambience temperature for the electronics must not be exceeded, which is 85°C.
