TDP 0,2 • TDPZ 0,2 is a speed sensor for drive, control and measurement technology in all industries with high demands of ruggedness. It features high signal quality and long operating life due to patented LongLife technology. It can measure speed and direction of rotation in real-time, requires no maintenance, has double silver track (redundancy), and standard temperature compensation of tacho voltage. It is available with various options such as rear extension shaft.

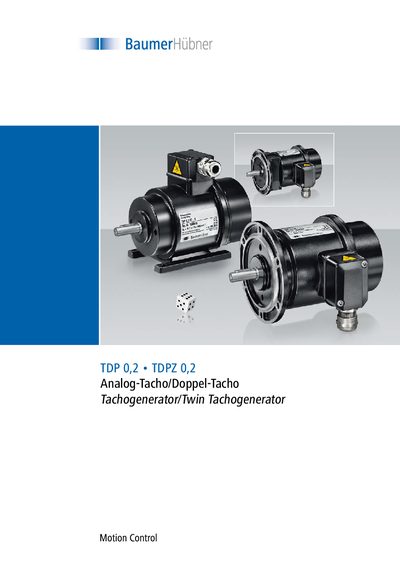

The Baumer TDP 0.2 and TDPZ 0.2 are analog/twin tachogenerators designed for drive, control and measurement applications that require high ruggedness. They provide real‑time speed and direction measurement, high signal quality, and a maintenance‑free design throughout the ball‑bearing life.
The document lists detailed electrical and mechanical specifications, optional accessories such as rear extension shafts and marine‑grade protection, and ordering keys for the different flange and foot versions. It also includes environmental ratings, weight, and mounting information. This manual is written in German.
| Power consumption (TDP 0.2) | 12 W |
|---|---|
| Power consumption (TDPZ 0.2) | 2 × 3 W |
| Calibration tolerance | ±1 % |
| Linearity tolerance | <0.15 % |
| Reversing tolerance | <0.1 % |
| Temperature range | -30 °C to +130 °C |
| Protection class | IP55 (optional IP56) |
| Weight (TDP 0.2) | 2.6 kg |
| Maximum axial shaft load | 60 N |
| Maximum radial shaft load | 80 N |
The sensors use patented LongLife technology, which gives high signal quality and a long operating life.
Yes, they are maintenance‑free during the lifetime of the ball bearings.
The standard protection class is IP55, with an optional IP56 version.
