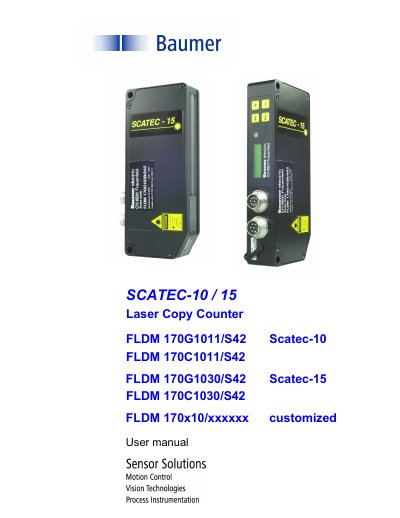

The Baumer Scatec-10 / -15 laser copy counter manual provides safety, installation, operation and maintenance instructions.
The Scatec-10 / -15 laser copy counter from Baumer is a precision measuring device that detects object edges and counts overlapping paper sheets in the printing industry. It generates electrical signals based on laser‑light detection and includes a keypad, display and optional remote‑control interface.
The manual covers safety information, certification, principle of operation, part identification, installation, parameter setting, specifications, accessories, maintenance and troubleshooting. It also provides customized data for special FLDM variants.
| Sensor size | 170 x 70 x 30 mm |
|---|---|
| Housing material | zinc die‑cast |
| Weight | approximately 700 g |
| Protection class | IP54 |
| Working temperature range | 0 °C to +50 °C (non‑condensing) |
| Storage temperature range | -20 °C to +60 °C |
Mount the sensor at a mounting height h of 70 ± 2 mm above or below the conveyor belt.
The laser diode belongs to the Class 2 laser standard (IEC 60825‑1).
The counting rate is up to 1.5 million copies per hour.
The sensor has a protection class of IP54.
