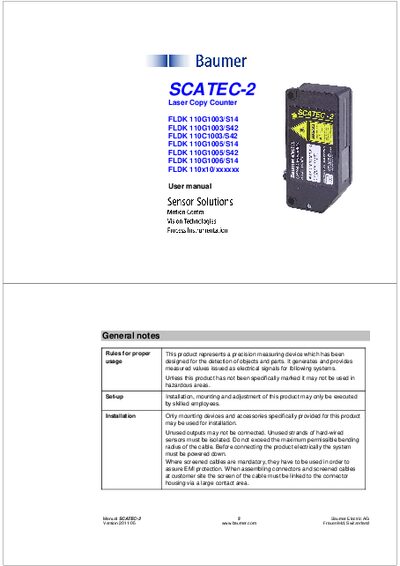

The Baumer FLDK 110G1003/S14 Laser Copy Counter User Manual provides safety information, installation steps, adjustments, operation principles…
This manual describes the SCATEC-2 Laser Copy Counter, a sensor that detects edges of paper copies for high‑speed counting in printing lines. It outlines safety certifications, principle of operation, and key features such as up to 600,000 copies per hour counting rate and adjustable output pulse length.
The document covers installation and mounting, DIP‑switch and software adjustments, detailed specifications, maintenance of the front window, accessories, and troubleshooting procedures with the ScaDiag software.
| Maximum counting rate | 600,000 copies per hour |
|---|---|
| Detectable edge thickness | ≥ 0.20 mm (FLDK 110x1003/Sxx) / ≥ 0.25 mm (FLDK 110x1005/Sxx and FLDK 110x1006/Sxx) |
| Laser class | Class 2 |
| Output pulse length vs. max production rate | 1 ms → 1,200,000 copies/h; 2 ms → 600,000 copies/h; 5 ms → 240,000 copies/h; 10 ms → 120,000 copies/h; 15 ms → 80,000 copies/h; 20 ms → 60,000 copies/h |
The nominal working distance is 40 mm above the conveyor belt.
