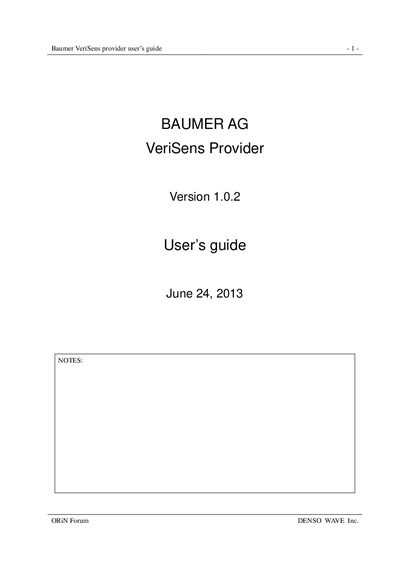

Baumer VeriSens Provider User Manual

About this manual

The VeriSens Provider is a software component that enables PC applications or DENSO RC8 controllers to communicate with Baumer VeriSens Smart Cameras over TCP/IP Ethernet. It acts as a client while the camera functions as a server, allowing commands and data exchange.

The guide covers the provider’s installation, the AddController method, the Execute command syntax, a full command reference (e.g., IsConnected, GetDataXYR, RebootDevice), sample programs, and detailed steps to configure the camera for the GetDataXYR function, including required device settings and output string format.

What's inside

• Introduction
• Outline of Provider
• Method and Property
• CaoWorkspace::AddController Method
• CaoController::Execute Method
• Command Reference
• Sample Program
• Preparing the Camera for GetDataXYR
• Output Process Interface Setup

Specifications

Frequently asked questions

How can I check if the provider is connected to the camera?

Use the command CaoController::Execute("IsConnected"); it returns a VT_BOOL indicating the connection status.

Which command retrieves the X, Y, and rotation data of a detected part?

Call CaoController::Execute("GetDataXYR"); it returns detection values (VT_R4 | VT_ARRAY) for X, Y, and rotation.

What command restarts the camera system?

Execute CaoController::Execute("RebootDevice"); it sends a reboot command to the camera.
