This document describes the PBMN flush full-welded pressure transmitter with front-flush diaphragm. It is suitable for various industries and applications, with features such as external programming of zero point and measurement range, excellent temperature performance, and optional ATEX certification.

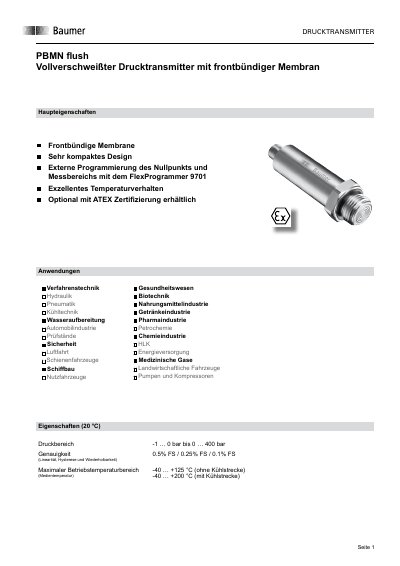

This document is a technical datasheet for the Baumer PBMN flush pressure transmitter, a fully welded device with a front-sealed diaphragm. It is designed for use in various industries including process engineering, hydraulics, pneumatics, and the automotive sector. The transmitter features a piezoresistive silicon sensor and offers high accuracy with excellent temperature behavior. This manual is written in German.
| Pressure Range | -1.0bar to +400bar |
|---|---|
| Accuracy | 0.5% FS / 10.25% FS / 10.1% FS |
| Operating Temperature Range | -40 to +125 °C (without cooling section) |
| Process Connection Material | Stainless Steel 1.4404 AISI 316L or Hastelloy C |
| Sealing Material | NBR, EPDM or FKM (Viton) |
| Output Signal | 4...20 mA or 0...10 V |
| Supply Voltage | 18...30 VDC |
| Protection Class | IP65 to IP67 |
It is suitable for process engineering, hydraulics, pneumatics, cooling technology, water treatment, and the automotive industry.
Yes, it is optionally available with ATEX certification for use in hazardous areas.
