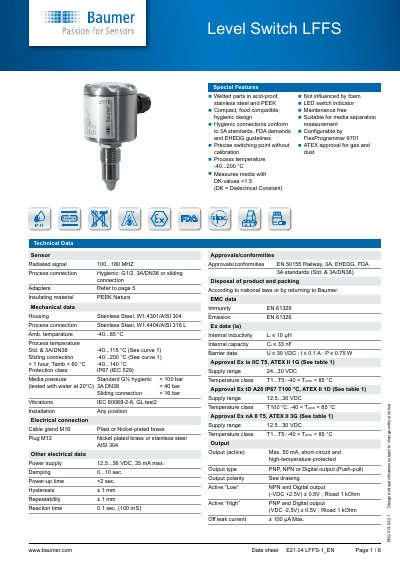

Technical data sheet for the Baumer LFFS-1 level switch, covering specifications, installation and approvals.
The Baumer LFFS-1 Level Switch is designed for level detection in tanks, media separation and dry‑run protection. It uses a high‑frequency sweep signal radiated from the sensor tip, forming a virtual capacitor that determines the switching point based on the media’s dielectric constant. The device can be configured via the FlexProgrammer 9701 for NPN, PNP or digital output and includes options for foam compensation and damping.
The datasheet provides detailed technical data, installation guidelines, ATEX and 3A/EHEDG approvals, and a list of accessories such as hygienic connections, sliding connections and isolating modules. Materials are food‑compatible stainless steel and PEEK, and the unit is maintenance‑free with an LED indicator.
| Process temperature range | -40 °C … 200 °C |
|---|---|
| Power supply voltage | 12.5 VDC … 36 VDC |
| Output type | PNP, NPN or Digital (push‑pull) |
| Protection class | IP67 (IEC 529) |
| Ambient temperature range | -40 °C … 85 °C |
| Media pressure (tested with water at 20 °C) | < 100 bar (G½ hygienic) |
The sensor can be configured for PNP, NPN or digital push‑pull output.
The device operates from 12.5 VDC up to 36 VDC.
Yes, it is Ex ia IIC T5, ATEX II 1G approved for gas and dust environments.
Wetted parts are made of acid‑proof stainless steel and PEEK.
