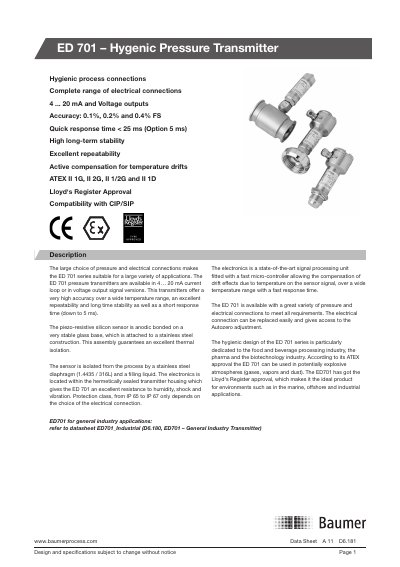

This datasheet details the specifications, technical data, ordering codes, and application information for the Baumer ED701 hygienic pressure transmitter.
The Baumer ED701 is a hygienic pressure transmitter designed for the food and beverage, pharmaceutical, and biotechnology industries. It features a piezo-resistive silicon sensor anodically bonded to a stable glass base, attached to a stainless steel construction for excellent thermal isolation. The device is available in 4...20 mA current loop or voltage output signal versions and offers high accuracy, excellent repeatability, and long-term stability.
| Output signal | 4 ... 20 mA and Voltage outputs |
|---|---|
| Accuracy | 0.1%, 0.2% and 0.4% FS |
| Response time | < 25 ms (Option 5 ms) |
| Protection class | IP 65 to IP 67 |
| Wetted parts material | All stainless steel |
| Oil filling | FDA approved white oil (Standard) |
| Approvals | ATEX II 1G, II 2G, II 1/2G and II 1D |
The ED701 series is particularly dedicated to the food and beverage processing industry, the pharma and the biotechnology industry.
The standard oil filling is FDA approved white oil.
Yes, according to its ATEX approval the ED701 can be used in potentially explosive atmospheres (gases, vapors and dust).
