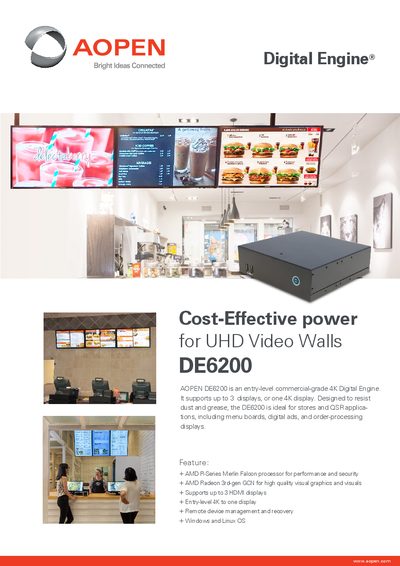

AOPEN DE6200 is an entry-level commercial-grade 4K Digital Engine supporting up to 3 displays, designed for stores and QSR applications.
The AOPEN DE6200 is an entry-level commercial-grade 4K Digital Engine designed to support up to three displays or one 4K display. It features an AMD R-Series Merlin Falcon processor and AMD Radeon 3rd-gen GCN graphics for high-quality visuals. The device is built to resist dust and grease, making it suitable for environments like stores and quick-service restaurants (QSR) for menu boards, digital ads, and order-processing displays.
| Processor | AMD Embedded R-series Merlin Falcon, RX-421BD 2.1-3.4 GHz Quad Core |
|---|---|
| Graphics | AMD Radeon R7 series HD graphics |
| Memory | Dual Channel, DDR4 SO-DIMM x 2, 1600 Mbps, max 16G |
| LAN | Realtek Gigabit Ethernet RTL8111H x 1 10/100/1000 Mbps |
| Audio | Realtek HD Audio ALC269Q Type Channel Stereo |
| Storage | M.2 2242 x 2 2.5" SA TA x 1 |
| Input Voltage | AC 100 ~240 V |
| Operating Temperature | 0 ~50 °C |
| Storage Temperature | -30 ~60 °C |
| Relative Humidity | 95% RH |
| MTBF | 50,000 hrs |
| Weight | 2.0 kg / 4.4 lb |
| Dimension (mm) | 166 x 48 x 157 mm |
| Housing Material | SECC |
It is an entry-level commercial-grade 4K Digital Engine designed for stores and QSR applications, such as menu boards and digital ads.
The device supports up to 3 HDMI displays or one 4K display.
The operating temperature range is 0 to 50 degrees Celsius.
