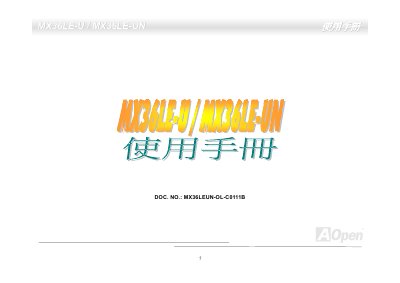

User manual for the AOpen MX36LE-U / MX36LE-UN motherboard covering installation, BIOS setup, drivers and troubleshooting.
This manual provides step‑by‑step instructions for installing the AOpen MX36LE‑U / MX36LE‑UN motherboard, including hardware mounting, CPU and memory installation, and connector wiring. It also details BIOS configuration, driver installation for Windows operating systems, and built‑in features such as USB, AGP, AC97 audio and Ethernet.
Additional sections cover troubleshooting, product registration, technical support contacts, and warranty information, helping users maintain and upgrade their system safely. This manual is written in Chinese.
| CPU socket | Intel Socket 370 |
|---|---|
| Chipset | VIA Apollo PLE133T |
| Supported CPUs | Pentium III and Celeron |
| Front Side Bus frequencies | 66 MHz, 100 MHz, 133 MHz |
| Maximum memory | 1 GB |
| Memory module types | 8 – 512 MB SDRAM modules |
| IDE controller | Ultra DMA 33/66/100 |
| USB ports | 4 |
| AGP VGA | 四倍速 AGP |
| Ethernet controller | Realtek 10/100 Mbps (MX36LE‑UN only) |
The board includes four USB ports.
It uses an Intel Socket 370.
The motherboard supports up to 1 GB of RAM.
