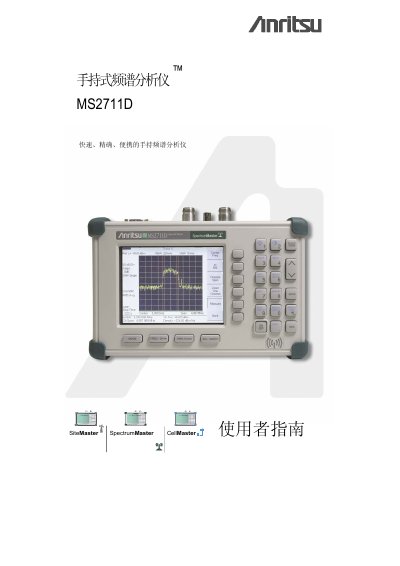

Anritsu MS2711D Handheld Spectrum Analyzer User's Guide

About this manual

The document is a user guide for the Anritsu MS2711D High Performance Handheld Spectrum Analyzer. It details the instrument's features, including its frequency range of 100 kHz to 3 GHz, battery operation capabilities, and large TFT color display suitable for outdoor use.

The manual covers standard attachments such as the handheld software tools and various adapters, along with optional configurations like power monitoring, interference analysis, channel scanning, and GPS functionality. It provides step-by-step instructions for performing basic measurements, saving data, printing results, and conducting preventive maintenance. This manual is written in Chinese.

What's inside

• Overview
• Quick Start Guide
• Key Functions
• Measurement Principles
• Field Measurements
• Power Measurements
• Transmission Measurements
• GPS Features
• Interference Analyzer Mode
• Channel Scanner Mode

Specifications

Frequently asked questions

What is the frequency range of the MS2711D?

The instrument covers a frequency range from 100 kHz to 3 GHz.

How long can the battery operate continuously?

A fully charged battery allows for up to 2-4 hours of continuous operation.
