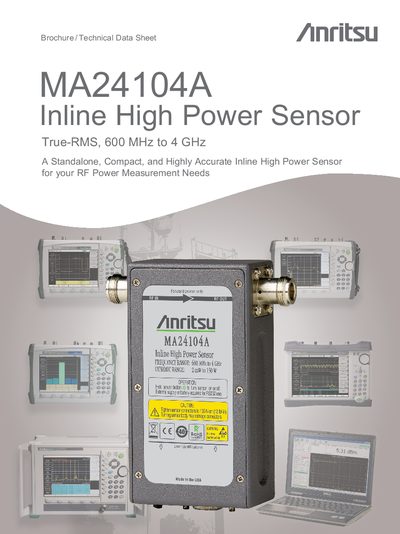

MA24104A is Anritsu's high precision inline power sensor. It covers the frequency range of 600MHz to 4GHz and supports 150W power measurement.
The MA24104A Inline High Power Sensor provides accurate average power measurements from 600 MHz to 4 GHz and from 2 mW to 150 W. It uses a dual‑path architecture and a built‑in micro‑controller to deliver True‑RMS readings for CW, multi‑tone and digitally modulated signals, and can be powered via USB, an external wall adapter, or three AA batteries.\n\nThe sensor connects to Anritsu handheld instruments or a PC running the PowerXpert application via a USB Mini‑B cable, and also supports RS‑232 with an external supply or batteries. It offers a forward‑only measurement channel, low insertion loss, and high directivity, making it suitable for field verification of base‑station transmitters, production testing, and continuous monitoring.
| Frequency range | 600 MHz to 4 GHz |
|---|---|
| Dynamic range | 2 mW to 150 W |
| Input return loss | > 29.5 dB (600 MHz‑3 GHz), > 26.5 dB (3‑4 GHz) |
| Insertion loss | < 0.15 dB (600 MHz‑1.25 GHz), < 0.20 dB (1.25‑4 GHz) |
| Directivity | > 30 dB (600 MHz‑3 GHz), > 26 dB (3‑4 GHz) |
| Measurement channels | 4 (Forward only) |
| Signal channel bandwidth | 100 Hz (typical) |
| Measurement uncertainty | 3.8 % (Ranges 1 and 2) |
| Maximum power | 150 W CW |
| Interface | USB 2.0, RS‑232 |
| Operating temperature | 0 °C to +55 °C |
| Weight | 445 g (0.98 lb) without batteries |
The sensor operates from 600 MHz up to 4 GHz.
It measures power from 2 mW to 150 W.
It can be powered via USB, an external wall adapter, or three AA batteries.
The sensor provides a USB 2.0 Mini‑B port and a 9‑pin D‑sub RS‑232 connector.
