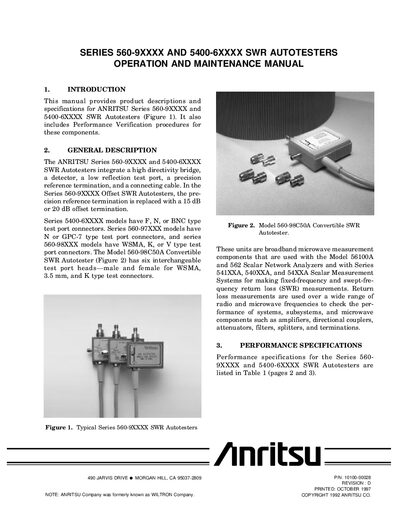

Operation and maintenance guide for ANRITSU Series 560‑9XXXX and 5400‑6XXXX SWR Autotesters, covering specifications, precautions, verification and servicing.
This manual provides product descriptions, performance specifications and verification procedures for ANRITSU Series 560‑9XXXX and 5400‑6XXXX SWR Autotesters. It details the high‑directivity bridge, detector, test ports and interchangeable connector heads used with ANRITSU scalar network analyzers.
The document also includes handling precautions, connector torque recommendations, pin‑depth measurement methods, directivity testing procedures and maintenance instructions to ensure reliable operation and long service life.
