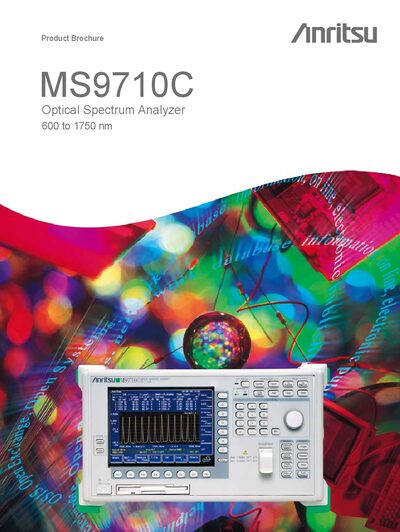

The Anritsu MS9710C Optical Spectrum Analyzer product brochure provides specifications, features, and options for the 600‑1750 nm analyzer.
The MS9710C is a compact, high‑performance optical spectrum analyzer covering the 600 to 1750 nm wavelength band. It offers high dynamic range, precise wavelength accuracy, and supports WDM measurements for up to 300 channels, making it suitable for LD/LED spectra, passive component testing, and fiber‑amplifier NF/gain measurements.
The instrument includes a built‑in attenuator, multiple interchangeable optical connectors, optional reference and SLD light sources, and external interfaces such as GPIB, RS‑232C, and VGA. A thermal printer and 6.4‑inch color TFT‑LCD provide on‑site documentation and easy operation.
| Wavelength range | 600 to 1750 nm |
|---|---|
| Wavelength accuracy | ±20 pm (1530‑1570 nm) |
| Resolution (RBW) | 0.05 nm |
| Dynamic range (1 nm from peak) | 70 dB |
| Optical reception sensitivity | –90 dBm |
| Optical input connectors | FC/PC, DIN, ST, SC, HMS‑10/A (user replaceable) |
| Built‑in attenuator range | up to +23 dB |
| Power supply | 85 to 132 Vac / 170 to 250 Vac, 47.5 to 63 Hz, 150 VA |
| Dimensions (W×H×D) | 320 mm × 177 mm × 350 mm |
It measures optical spectra from 600 nm to 1750 nm.
The analyzer can handle up to 300 WDM channels for wavelength, level, and SNR measurement.
The guaranteed optical reception sensitivity is –90 dBm.
Yes, the built‑in attenuator can be switched on to measure inputs up to +23 dB.
