Start here

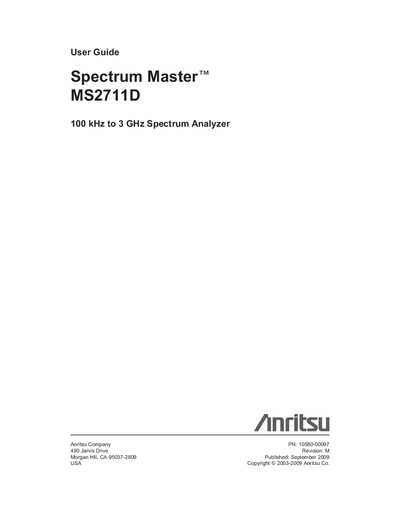

Anritsu Spectrum Master MS2711D User Guide
This guide covers the Anritsu Spectrum Master MS2711D handheld spectrum analyzer, describing its features, accessories, and performance specifications. It includes instructions for initial setup, basic measurements, and battery operation.
The manual also details advanced functions such as power measurements, transmission measurement, interference analysis, and software tools for data export and analysis, along with warranty and regulatory information.
Anritsu MS2711D specifications
| Frequency range | 100 kHz to 3.0 GHz (tunable to 9 kHz) |
|---|---|
| Full‑span scan time | ≤ 1.1 s |
| Resolution bandwidth | 100 Hz to 1 MHz |
| Noise floor | ≤ –135 dBm |
| Maximum input power | +43 dBm (peak) |
| Weight | 2.14 kg (4.7 lb) |
| Display resolution | 640 × 480 VGA |
| External DC supply | +12.5 V to +15 V, up to 1350 mA |
| Battery | 10.8 V, 1800 mAh Ni‑MH |
| Test curve storage | Up to 200 curves |
Source: Anritsu MS2711D Handheld Spectrum Analyzer User Manual
All Anritsu MS2711D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long does a full‑span scan take?
The MS2711D can complete a full‑bandwidth scan in 1.1 seconds or less.
From: Anritsu MS2711D Handheld Spectrum Analyzer User Manual
What is the maximum input power the instrument can tolerate?
It can safely handle input signals up to +43 dBm (peak).
From: Anritsu MS2711D Handheld Spectrum Analyzer User Manual
