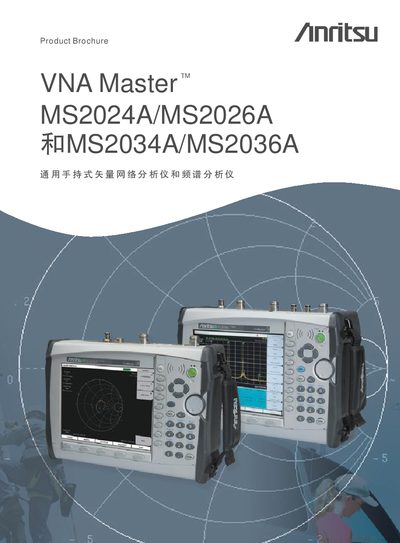

Anritsu VNAMaster MS2024A/MS2026A/MS2034A/MS2036A is a portable handheld vector network analyzer and spectrum analyzer for field RF testing, offering 2-port…
The Anritsu VNAMaster series combines vector network analysis and spectrum analysis in a single handheld, battery-operated instrument. Designed for field RF engineers and technicians, it replaces bulky benchtop equipment to allow mobility in testing radar, antennas, and communication systems for defense, aerospace, and wireless applications. The MS202xA models provide 2-port vector network analysis, while the MS203xA models add wide-range spectrum analysis capabilities. This manual is written in Chinese.
| Weight | Not exceeding 4kg (including battery) |
|---|---|
| Display | 8.4-inch full-color TFT large screen |
| RF Connector | N-type female |
| Storage | 64MB |
| Battery Operation | >2.5~4 hours per charge |
| VNA Frequency Range | 2MHz~6GHz |
| Spectrum Analyzer Frequency Range | 100kHz~7.1GHz |
| Dynamic Range (Spectrum) | ≤100dB |
| Noise Floor (Spectrum) | -153dBm at 10Hz RBW (with preamplifier) |
The instrument weighs no more than 4kg, including the battery.
Yes, it is a battery-operated solution that allows roaming in the field without AC power.
It performs 2-port vector network analysis and wide-range spectrum analysis.
