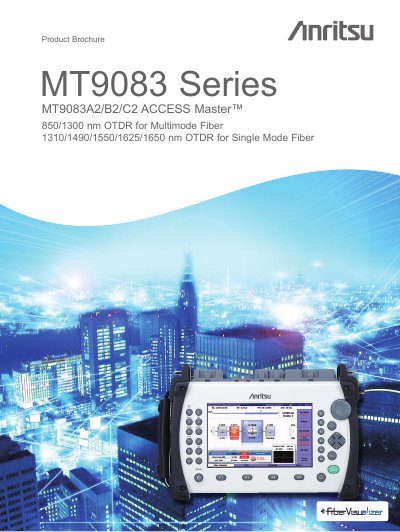

The Anritsu MT9083A2/B2/C2 ACCESS Master is a compact, rugged OTDR with multi‑wavelength testing for multimode and single‑mode fiber networks.
The MT9083 ACCESS Master series combines high‑resolution OTDR performance with a lightweight, sealed design for field use. It supports both multimode (850/1300 nm) and single‑mode (1310/1490/1550/1625/1650 nm) testing, up to 1 × 128 PON splitters, and offers features such as Bluetooth, Wi‑Fi, Ethernet connectivity, and PDF reporting.
Designed for installers and technicians, the unit includes a 7‑inch TFT‑LCD display, up to 12 hours of battery operation, internal storage for 1 000 traces, and optional accessories like a connector inspection microscope and video inspection probe. The brochure details specifications, operating modes, and optional options for enhanced range and high‑resolution measurements.
| Dimensions (without protector) | 270 × 165 × 61 mm |
|---|---|
| Mass (without protector) | 1.6 kg |
| Display | 7‑inch TFT‑LCD, 800 × 480, LED backlight |
| Battery operation time | Up to 12 hours |
| Wavelengths (multimode) | 850 nm / 1300 nm |
| Wavelengths (single‑mode) | 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm |
| Sampling resolution | 5 cm (minimum) |
| Internal data storage | 1 GB (≈1 000 traces) |
The MT9083 provides up to 12 hours of operation on a single charge.
The internal memory can store up to 1 000 traces.
Yes, it supports 850/1300 nm for multimode and 1310/1490/1550/1625/1650 nm for single‑mode fibers.
