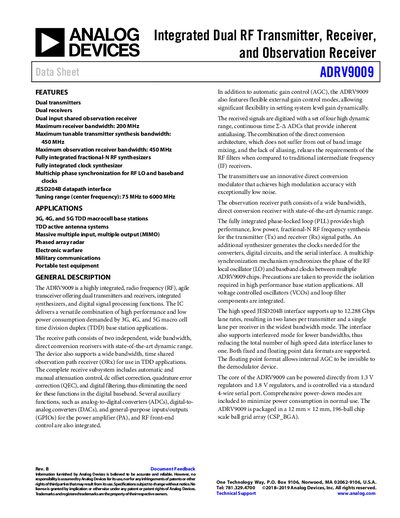

The Analog Devices ADRV9009 data sheet provides specifications, functional block diagram, and application information for the integrated dual RF…
The ADRV9009 is a highly integrated RF agile transceiver offering dual transmitters, dual receivers, and a shared observation receiver, covering 75 MHz to 6 GHz and supporting 3G/4G/5G, radar, and military applications.
The data sheet details functional block diagram, electrical specifications, power consumption, timing diagrams, pin configurations, and PCB layout guidelines, including a JESD204B high‑speed interface and power‑supply requirements.
| Center Frequency Range | 75 MHz – 6000 MHz |
|---|---|
| Transmitter Synthesis Bandwidth | 450 MHz |
| Receiver Bandwidth | 200 MHz |
| Observation Receiver Bandwidth | 450 MHz |
| Core Supply Voltage (VDDA1P31) | 1.3 V |
| TX Supply Voltage (VDDA1P8_TX) | 1.8 V |
| Package | 12 mm × 12 mm, 196‑ball CSP_BGA |
| JESD204B Lane Rate | up to 12.288 Gbps |
It operates from 75 MHz to 6 GHz for the transmitters, receivers, and observation receiver.
It uses a JESD204B interface that supports lane rates up to 12.288 Gbps.
