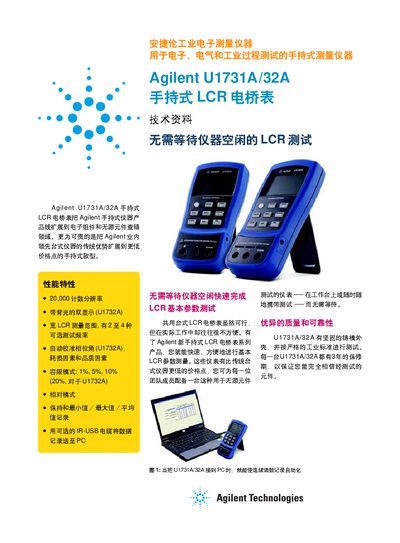

The Agilent U1731A/32A handheld LCR bridge offers 20,000 count resolution, dual backlit display, and wide measurement ranges for resistance, capacitance…
The Agilent U1731A/32A handheld LCR bridge expands Agilent's instrument line into portable testing of electronic components and passive parts. It provides high‑resolution measurements with a 20,000 count resolution and a dual backlit display (U1732A) for easy reading in low‑light conditions.
The device operates from a 9 V alkaline battery or optional AC adapter, drawing about 40 mA and delivering up to 7 hours of typical battery life. It supports multiple test frequencies (120 Hz, 1 kHz, and up to 10 kHz on the U1732A) and offers automatic calibration of phase angle, dissipation factor and quality factor. Ordering includes user and service guides, test leads, calibration certificate and optional accessories. This manual is written in Chinese.
| Resolution | 20,000 counts |
|---|---|
| Display | Dual backlit display (U1732A) |
| Test Frequencies (U1731A) | 120 Hz, 1 kHz |
| Test Frequencies (U1732A) | 100 Hz, 120 Hz, 1 kHz, 10 kHz |
| Power Supply | 9 V alkaline battery (optional AC adapter) |
| Power Consumption | ~40 mA (battery) |
| Battery Life | ≈7 hours (typical) |
| Weight | 330 g |
| Dimensions (HxWxD) | 184 mm × 87 mm × 41 mm |
The instrument provides about 7 hours of operation on a typical alkaline 9 V battery.
The U1731A model can measure at 120 Hz and 1 kHz.
Yes, the U1732A includes a backlit dual display.
It offers a 20,000 count resolution.
