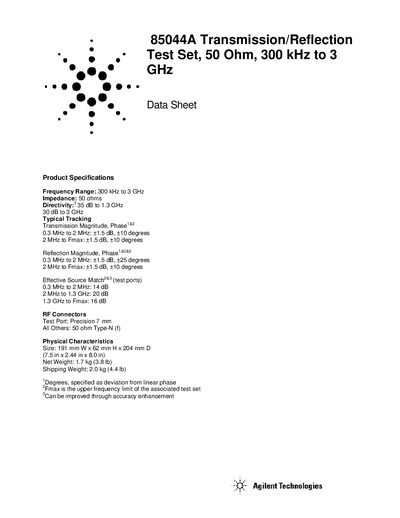

85044A Transmission/Reflection Test Set, 50 Ohm, 300 kHz to 3 GHz Data Sheet
The Agilent 85044A Transmission/Reflection Test Set is a 50 Ω, 300 kHz to 3 GHz instrument designed for precise RF measurements. The data sheet provides detailed specifications such as frequency range, impedance, directivity, tracking performance, and connector types.
Physical dimensions are 191 mm W × 62 mm H × 204 mm D, with a net weight of 1.7 kg and shipping weight of 2.0 kg. RF connections include a precision 7 mm test port and standard 50 Ω Type‑N connectors for all other ports.
| Frequency Range | 300 kHz to 3 GHz |
|---|---|
| Impedance | 50 ohms |
| Directivity (up to 1.3 GHz) | 35 dB |
| Test Port Connector | Precision 7 mm |
| Other RF Connectors | 50 Ω Type‑N |
| Size (W × H × D) | 191 mm × 62 mm × 204 mm |
| Net Weight | 1.7 kg |
It operates from 300 kHz up to 3 GHz.
The test port uses a precision 7 mm connector.
The net weight is 1.7 kg (3.8 lb).
