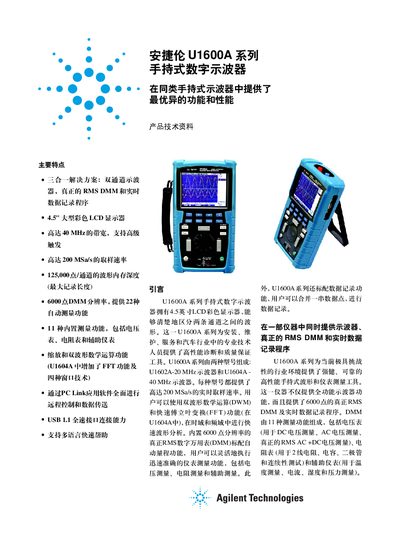

The U1600A Series Handheld Digital Oscilloscope is a three-in-one solution that combines a dual-channel oscilloscope, a true RMS DMM, and a real-time data recorder. It features a 4.5-inch large color display, up to 40 MHz bandwidth, up to 200 MSa/s sampling rate, 125,000 points/channel waveform memory depth (maximum record length), 6000-point DMM resolution, 22 automatic measurement functions, 11 built-in measurement functions, zoom and dual waveform mathematical operations, FFT function and four window technologies, USB 1.1 full-speed interface connection capabilities, multilingual quick help and other features.
The U1600A series offers two models—U1602A (20 MHz) and U1604A (40 MHz)—each featuring a 4.5" color LCD, dual‑channel operation, and up to 200 MSa/s real‑time sampling. Built‑in 6000‑point true RMS DMM and 22 automatic measurements provide voltage, resistance, capacitance, diode, continuity, temperature, humidity and pressure readings.
Advanced functions include dual‑waveform math (DWMD), FFT (U1604A only) with four window types, high‑resolution memory (125 kb per channel), and flexible trigger modes (edge, pulse, pattern, video). The PC Link software enables USB‑based remote control, data acquisition, storage to flash drives, and printing. This manual is written in Chinese.
| Bandwidth | 20 MHz (U1602A) / 40 MHz (U1604A) |
|---|---|
| Maximum Sampling Rate | 200 MSa/s per channel (interleaved 100 MSa/s each) |
| Memory Depth | 125 kb per channel (≈125,000 points) |
| Automatic Measurements | 22 types |
| Supported Languages | English, German, Italian, Spanish, Portuguese, French, Korean, Simplified Chinese, Traditional Chinese, Japanese |
The oscilloscope can sample at up to 200 MSa/s per channel (interleaved 100 MSa/s each).
The instrument provides 22 automatic measurement functions.
The help menu supports English, German, Italian, Spanish, Portuguese, French, Korean, Simplified Chinese, Traditional Chinese and Japanese.
