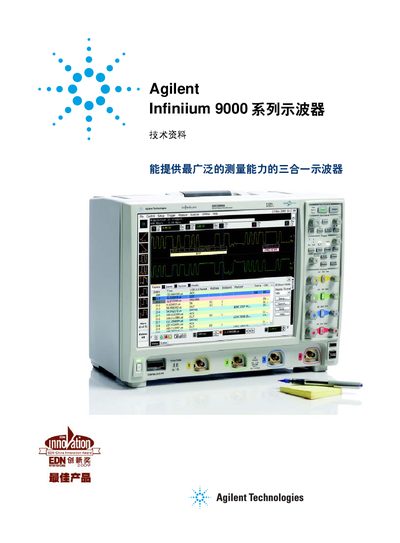

The Infiniium 9000 series oscilloscope is a three-in-one instrument that can be used as an oscilloscope, logic analyzer, and protocol analyzer. It has a bandwidth of up to 4 GHz, a 15-inch XGA LCD display, and weighs only 26 pounds (11.8 kg).
The Infiniium 9000 series combines oscilloscope, logic analyzer and protocol analyzer functions in a compact 15‑inch XGA LCD instrument. It offers up to 4 GHz analog bandwidth, 20 GSa/s sampling, deep memory and extensive trigger and measurement features for a wide range of test and debug applications.
The series includes DSO and MSO models with four analog channels, up to 16 logic channels, optional application software for serial bus decoding, and a variety of upgrade options for bandwidth, storage depth and accessories. This manual is written in Chinese.
| Maximum analog bandwidth | 4 GHz |
|---|---|
| Maximum sampling rate | 20 GSa/s |
| Display | 15‑inch XGA LCD |
| Depth (height) | 9 in (23 cm) |
| Standard memory per channel | 10 Mpts |
| Maximum memory depth | 1 Gpts |
The series provides up to 4 GHz of analog bandwidth.
Each channel is equipped with a standard 10 Mpts memory depth.
All models feature a 15‑inch XGA LCD display.
