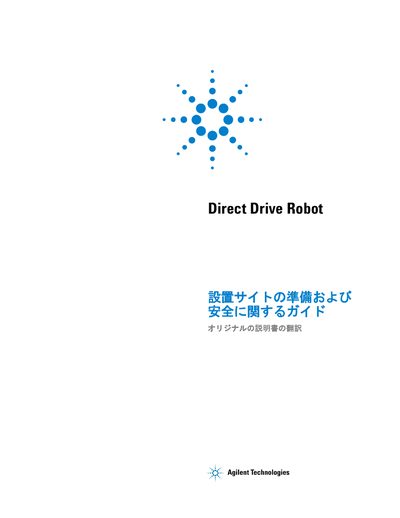

This manual provides safety installation guidelines for the Agilent Technologies Direct Drive Robot.
The Agilent Direct Drive Robot Installation Site Preparation and Safety Guide is intended for installers, integrators, laboratory managers and administrators who are responsible for setting up and maintaining the robot.
It covers safety warnings, physical dimensions, environmental limits, electrical and computer requirements, and provides detailed specifications to ensure proper installation and operation. This manual is written in Japanese.
| Height | 85.1 cm (33.5 in) |
|---|---|
| Width | 51 cm (20 in) |
| Depth | 38 cm (15 in) |
| Weight | 31.1 kg (68.5 lb) |
| Operating temperature | 4–40 °C |
| Operating humidity | 10–90 % RH, non‑condensing |
| Supported operating systems | Microsoft Windows XP SP3, Vista SP2, or Windows 7 |
| Minimum CPU | 2 GHz or faster 32‑bit (x86) processor |
The guide contains “Warning” and “Caution” notifications that indicate hazards and state that failure to follow the instructions may cause personal injury or equipment damage.
The robot must operate within a temperature range of 4 °C to 40 °C and a relative humidity range of 10 % to 90 % non‑condensing.
A PC running Windows XP SP3, Vista SP2, or Windows 7, with at least a 2 GHz 32‑bit processor, 2 GB RAM, 40 GB hard‑drive space, 1280 × 1024 screen resolution, and IE 6 or Firefox 1 plus a PDF viewer.
