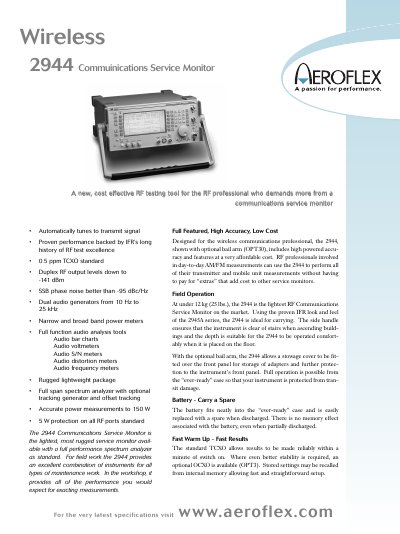

User manual for the Aeroflex 2944 Communications Service Monitor, a rugged RF test tool for wireless professionals featuring spectrum analysis and audio tools.
The Aeroflex 2944 Communications Service Monitor is a rugged, lightweight RF test tool designed for wireless communications professionals. It features automatic tuning, a full performance spectrum analyzer, accurate power measurements, and advanced audio analysis tools suitable for both field and workshop use. The device is noted for its high accuracy and low cost, making it an excellent combination of instruments for maintenance work.
| Frequency Range (RF Signal Generator) | 400 kHz to 1.05 GHz |
|---|---|
| Output Level Range (N-Type) | -141 to -21 dBm |
| Output Level Range (BNC) | -115 to +5 dBm |
| Power Measurement Accuracy | Better than 10% |
| Weight | Under 12 kg |
| Audio Frequency Meter Range | 20 Hz to 20 kHz |
The RF signal generator provides coverage from 400 kHz to 1.05 GHz.
Yes, full duplex operation is provided by the 2944 allowing testing of duplex radios.
Remote control is provided with an RS-232 interface as standard, with an optional IEEE-488.2 interface.
