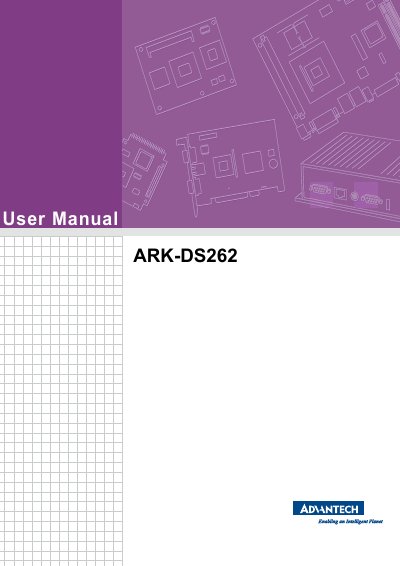

The Advantech ARK-DS262 user manual provides hardware specs, installation steps, BIOS settings and remote management features for the digital signage player.
This manual introduces the ARK-DS262 digital signage player, a compact OPS‑compliant module powered by a 3rd‑generation Intel Core i7 or i3 processor. It details the product’s hardware specifications, mechanical dimensions, power requirements, environmental limits and supported interfaces.
The guide also covers hardware installation, BIOS configuration, and the built‑in SUSIAccess remote‑management system, helping users set up, maintain and troubleshoot the device in signage deployments.
| CPU | Intel 3rd‑gen Core i7‑3555LE 2.5 GHz or Core i3‑3217UE 1.6 GHz |
|---|---|
| System Memory | 2 × DDR3 204‑pin SODIMM sockets, up to 16 GB total |
| Hard Disk Drive | 1 × 2.5" SATA HDD, max 9.5 mm height |
| Dimensions | 200 mm × 119 mm × 30 mm (OPS compliant) |
| Weight | 1.0 kg (2.2 lb.) |
| Power Consumption | Typical 19 W, Max 30 W |
| System Power Input | 12 V ~ 24 V DC (via OPS interconnection) |
| Operating Temperature | -10 °C to 50 °C (14 ~ 122 °F) |
| Relative Humidity | 95 % @ 40 °C (non‑condensing) |
| Storage Temperature | -20 °C to 70 °C (-4 ~ 167 °F) |
| RTC Battery | 3 V / 195 mAh BR2032 |
It can operate from –10 °C up to 50 °C (14 ~ 122 °F).
