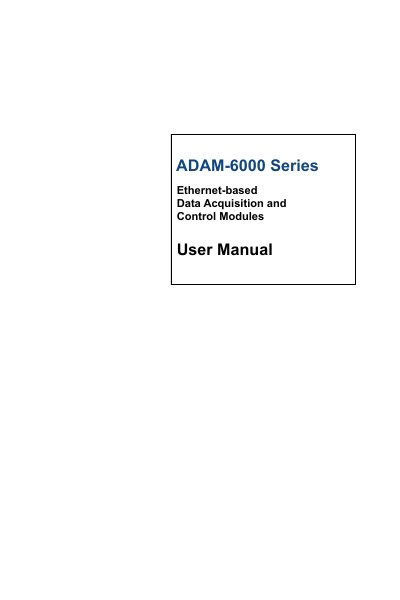

The Advantech ADAM-6000 Series user manual provides installation, configuration, and operation instructions for Ethernet‑based data acquisition and control…
The manual introduces the ADAM-6000 series, describing major features, specifications, dimensions, LED status, and hardware installation steps such as panel or DIN‑rail mounting, power wiring, and I/O connections.
It also details system configuration using the ADAM.NET utility, Modbus/TCP and ASCII command sets, SNMP and REST interfaces, Java applet customization, and the Graphic Condition Logic (GCL) programming environment. Appendices cover design worksheets, data formats, grounding practices, and new‑version enhancements.
| Communication | 10/100 Base‑T Ethernet |
|---|---|
| Supported Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, ICMP, DHCP, ARP |
| Analog Input Channels | 8 (differential) |
| Input Impedance | > 10 MΩ |
| Digital Output | 8 channels, Open‑collector sink to 30 V, 100 mA max, 300 mW per channel |
