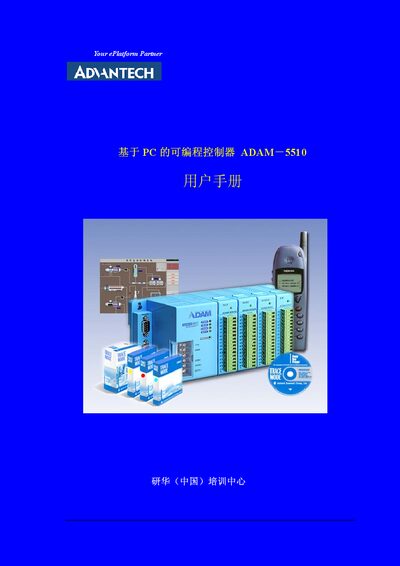

User manual for the Advantech ADAM-5510 programmable controller covering installation, I/O modules, programming and diagnostics.
The ADAM-5510 is a PC‑based programmable controller with a rugged industrial‑grade enclosure, 80188‑40 CPU, flash and SRAM memory, and built‑in RS‑232/RS‑485 communication ports. It provides isolated power, I/O and communication interfaces for reliable operation in harsh environments.
This manual includes a system overview, installation guide, description of the ADAM‑5000 series I/O modules, programming and download procedures, function library details, a quick‑start Trace Mode guide, and instructions for connecting to AUTOVIEW software. Appendices contain additional reference material and free development tools. This manual is written in Chinese.
| CPU | 80188‑40, 16‑bit |
|---|---|
| Flash ROM | 256 KB (170 KB user‑available) |
| SRAM | 1 MB |
| Communication ports | COM1 RS‑232, COM2 RS‑485 |
| Isolation ratings | Power 3000 VDC, I/O 3000 VDC, Communication 2500 VDC |
The controller operates with a supply voltage between +10 VDC and +30 VDC.
The system provides four I/O module slots, numbered 0 to 3.
The RS‑485 interface can transmit up to 4000 feet (1220 m).
Isolation is 3000 VDC for power and I/O, and 2500 VDC for communication.
