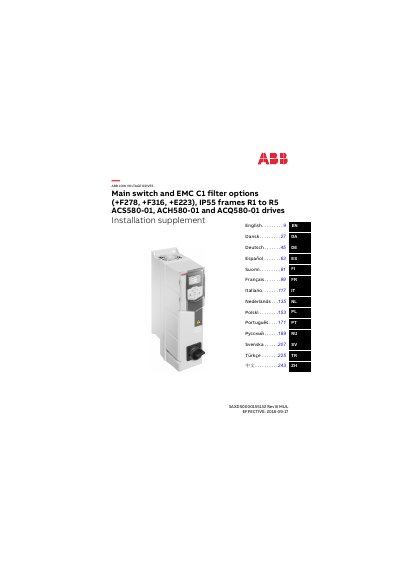

This supplement provides installation instructions for the main switch and EMC C1 filter options on ABB low voltage drives ACS580‑01, ACH580‑01 and ACQ580‑01.
The document is an installation supplement for ABB low voltage drives (ACS580‑01, ACH580‑01, ACQ580‑01) covering the main‑switch‑disconnector (+F278 or +F316) and the EMC C1 filter (+E223 or +F316). It references the R1…R5 quick installation and start‑up guides and applies to frame sizes R1 to R5.
It includes operation principles, safety instructions, wiring diagrams, technical data, compliance with EN 61800‑3:2004+A1:2012, and step‑by‑step installation procedures for the auxiliary connector and commissioning of the main switch.
| Maximum drive power‑ups | 5 in 10 minutes |
|---|---|
| Main switch load rating | Dimensioned to withstand the full load current of the drive |
Stop the drive, wait until the motor has stopped, turn the main switch to the OFF position, and attach a lock before working on the drive.
No, the main switch does not isolate the input cables; they must be isolated at the distribution board or by opening the supply transformer disconnector before work.
