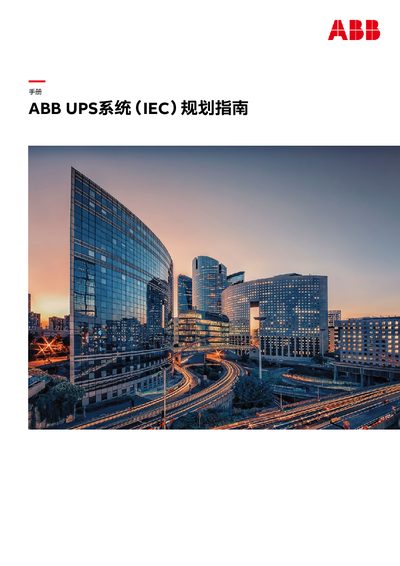

This guide provides planning, installation, maintenance, selectivity, modular design and product‑specific information for ABB IEC UPS systems.
The ABB IEC UPS System Planning Guide helps users select and implement UPS solutions for data centers, factories, offices and transport environments. It covers UPS types, modular architecture, battery options, topologies and accessories, and offers step‑by‑step instructions for proper selection, planning, installation and commissioning.
Key sections include UPS system planning, installation guidelines, maintenance procedures, network selectivity, modular UPS design, product‑specific data sheets, communication solutions and support services. The guide also references ABB Ability™ SmartTracker and provides contact information for further assistance. This manual is written in Chinese.
| System power range | 10–400 kW |
|---|---|
| Maximum efficiency | 96% |
| Operating temperature | 0 °C to +40 °C |
| Rated input voltage | 3×380/220 V, 3×400/230 V, 3×415/240 V |
| Supported battery types | VRLA, NiCd, Li‑Ion |
The UPS maximum load should not exceed about 80–90 % of its output capacity.
Supported interfaces include USB, RS‑232, SNMP slots, ModBus and optional Ethernet/Profinet connections.
