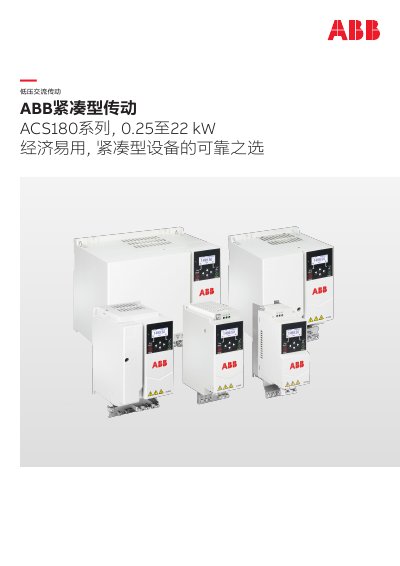

The ABB ACS180 compact drive series provides reliable, space‑saving inverters with built‑in EMC filter, STO safety and extensive I/O options.
The ACS180 series is a compact, easy‑to‑use inverter designed for a wide range of industrial applications such as food & beverage, material handling, textiles and water treatment. It combines a small footprint with robust performance, offering features like sensor‑less vector control, built‑in EMC filtering and Safety Torque Off (STO).
The drive supports both asynchronous and permanent‑magnet synchronous motors, offers flexible digital and analog I/O, and can be programmed with custom logic using the built‑in mini‑PLC. Optional accessories include built‑in EMC filters and various braking resistor options, making the ACS180 suitable for both industrial and commercial equipment. This manual is written in Chinese.
| Power range | 0.25–22 kW |
|---|---|
| Maximum ambient temperature | 60 °C |
| Optional built‑in EMC filter | Available |
| Safety Torque Off (STO) | Built‑in on ACS180‑04S |
| Supported motor types | Asynchronous and permanent‑magnet synchronous |
| Digital inputs | DI1–DI4 (e.g., start/stop, direction) |
The ACS180‑04S model includes a built‑in Safety Torque Off (STO) function that disables the motor when both safety contacts are closed.
The ACS180 can control both asynchronous (induction) motors and permanent‑magnet synchronous motors.
It provides at least four digital inputs (DI1–DI4) for functions such as start/stop and direction control.
No, the ACS180‑04S model has a built‑in EMC filter, so an external filter is not needed unless special EMC requirements apply.
