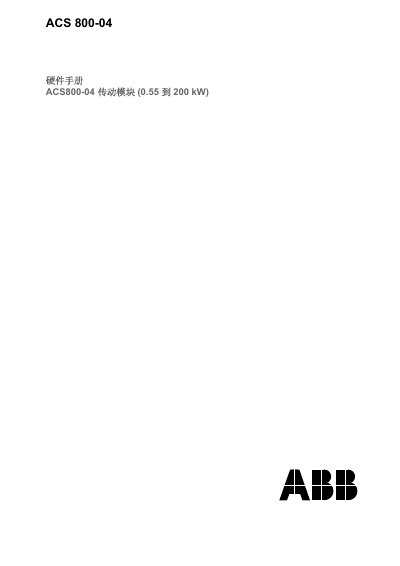

ABB ACS800-04 Drive Module Hardware Manual

Hardware manual for the ABB ACS800-04 drive module covering safety, installation, wiring, and maintenance for 0.55‑200 kW units.

Brand: ABB
Category: Motor
Document type: Service Manual
Language: Chinese
Pages: 136
File format: PDF
File size: 7.1 MB
Updated: 05 October, 2026
Model: ACS-800-04
MD5 checksum: 73B81B07100A3660A95BC76B6339A188
PDF: ABB ACS800-04 Drive Module Hardware Manual PDF

About this manual

The ACS800-04 is a drive module for power ranges from 0.55 kW to 200 kW. This manual provides comprehensive safety instructions, mechanical and electrical installation guidelines, and detailed maintenance procedures.

It also includes technical data, dimension drawings, brake resistor information, firmware references, and optional‑part details, ensuring qualified personnel can correctly install, commission, and service the unit. This manual is written in Chinese.

What's inside

Safety Instructions
Mechanical Installation
Electrical Installation Design
Grounding
Technical Data
Brake Resistor
Firmware Manual
Optional Parts Manual
Installation and Commissioning Flowchart

Specifications

Power range	0.55 kW to 200 kW
Maximum DC brake voltage	> 500 V
Allowed DC capacitor charge cycles	5 times per 10 minutes

Frequently asked questions

What is the power rating range of the ACS800-04 drive module?

The ACS800-04 module is rated for power from 0.55 kW up to 200 kW.

How many times can the DC capacitor group be charged within ten minutes?

The DC capacitor group may be charged up to five times in a ten‑minute period.

Download PDF (7.1 MB)
