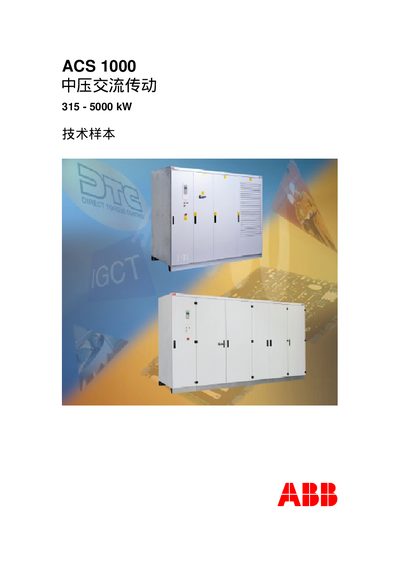

Technical data sheet for the ABB ACS1000 medium‑voltage drive covering power range, voltage options and key specifications.
The ACS1000 is ABB's medium‑voltage AC drive family designed for power ratings from 315 kW up to 5 MW. It supports three voltage classes (2.3 kV, 3.3 kV and 4.0 kV) and offers both air‑cooled (A‑series) and water‑cooled (W‑series) frame sizes.
The document provides detailed technical parameters, optional features such as IGCT modules, control and protection options, installation guidelines, and environmental ratings. It also lists configuration tables for output frequency, field weakening, and enclosure IP classes. This manual is written in Chinese.
