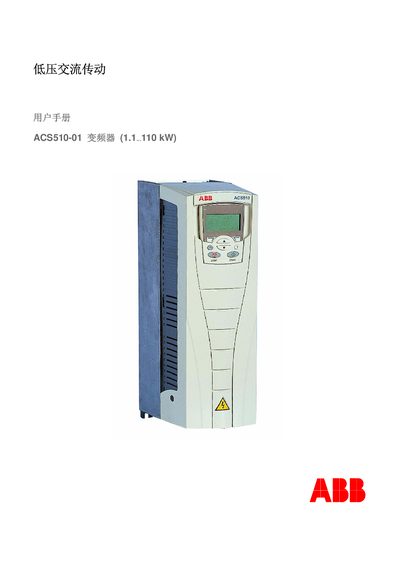

This document is a user manual for the ABB ACS510-01 low voltage AC drive, providing information on installation, startup, diagnostics, maintenance, etc.
This manual covers the complete usage of the ABB ACS510‑01 variable‑frequency drive. It includes safety warnings, installation instructions, startup procedures, built‑in fieldbus overview, optional fieldbus adapters, diagnostics, maintenance, and technical data.
The document emphasizes that only qualified technicians may install or service the drive, outlines required tools, environmental requirements, grounding procedures for both symmetric and floating networks, and provides detailed fault codes and troubleshooting steps. This manual is written in Chinese.
| Rated Capacity | 1.1…110 kW |
|---|---|
| Input Voltage | 3~ 380…480 V |
| Input Current (I1N) | 9.4 A |
| Output Frequency Range | 10…500 Hz |
| Enclosure IP Rating (symmetrical network) | IP 21/ UL 1 |
| Enclosure IP Rating (dusty environment) | IP 54/ UL 12 |
Only professional technical personnel are permitted to install the ACS510‑01.
Wait 5 minutes after power is removed to allow the internal capacitors to discharge before opening the front panel.
Remove the EM1 and EM3 screws (or F1 and F2 screws) before powering the inverter.
