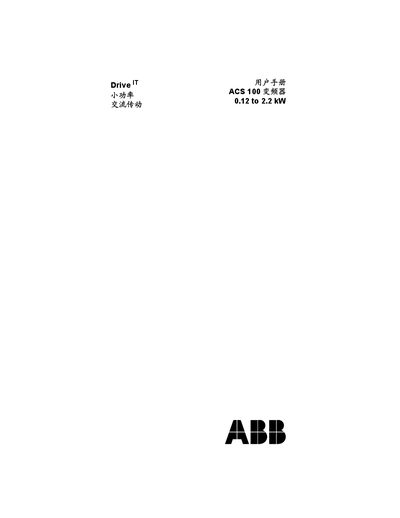

This document is the user manual for Drive IT low power AC drive ACS 100, produced by ABB Industry Oy. It provides information on installation, operation, parameter settings, etc.
This manual covers the ABB ACS100, a small‑power AC drive (0.12 to 2.2 kW). It includes safety warnings for qualified personnel, instructions for installing the unit, wiring, and connecting motor and control cables, as well as guidelines for proper grounding and environmental requirements.
The document also lists technical data such as power rating, temperature and altitude limits, parameter tables, programming functions, menu navigation, fault diagnosis, and service and warranty information for the ACS100. This manual is written in Chinese.
| Power rating | 0.12 to 2.2 kW |
|---|---|
| Operating temperature range | 0 °C – 40 °C (0 °C – 30 °C at 16 kHz switching) |
| Maximum temperature | 50 °C |
| Storage temperature range | -40 °C – 70 °C |
| Altitude limit | 0 – 1000 m (up to 2000 m with reduced performance) |
| Relative humidity | up to 95 % (non‑condensing) |
The ACS100 has a warranty period of 24 months from the date of manufacture.
No, the ACS100 is not a field‑repairable unit; damaged units should be replaced by the supplier.
After disconnecting the main power, wait at least 5 minutes before opening the front panel.
The device can operate from 0 °C to 40 °C (up to 50 °C under certain conditions).
