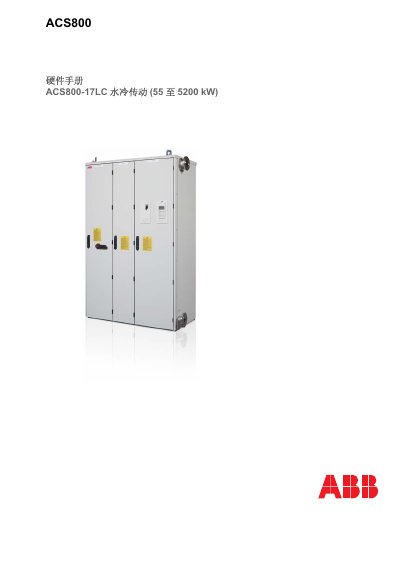

ABB ACS800-17LC Water-Cooled Drive Hardware Manual

The ABB ACS800-17LC hardware manual provides installation, safety, wiring, cooling and maintenance instructions for the water‑cooled drive.

Brand: ABB
Category: Industrial Supply
Document type: User Manual
Language: Chinese
Pages: 164
File format: PDF
File size: 8.4 MB
Updated: 03 October, 2026
MD5 checksum: 63F3194206BD4E2AB3981D61E964F4FE
PDF: ABB ACS800-17LC Water-Cooled Drive Hardware Manual PDF

About this manual

This manual covers safety requirements, hardware description, mechanical and electrical installation, and the water‑cooling system for the ACS800‑17LC drive. It includes detailed wiring diagrams, cabinet layouts, and guidelines for grounding, emergency stop, and fault monitoring.

The document also provides commissioning procedures, parameter settings, troubleshooting, and maintenance schedules, along with technical data, dimensions, and environmental specifications for the drive system. This manual is written in Chinese.

What's inside

Safety Information
Hardware Description
Mechanical Installation
Electrical Installation
Cooling Loop
Commissioning
Maintenance
Technical Data
Dimensions

Specifications

Rated Power (kW) for ACS800-17LC-0110-3	55 kW
Rated Voltage (UN)	400 V
Maximum Input Current (A) for ACS800-17LC-0200-3	283 A

Frequently asked questions

What are the dimensions of the ACS800‑17LC drive unit?

The dimensions are listed in the Dimensions chapter, showing structural sizes for R7i+R7i and R8i+R8i configurations.
