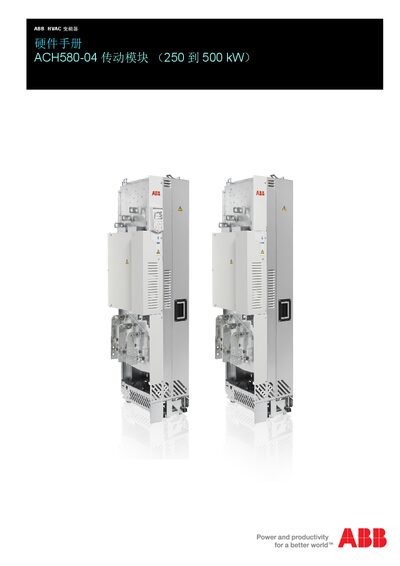

The ABB ACH580-04 HVAC inverter hardware manual provides safety guidelines, installation steps, wiring diagrams, and maintenance procedures for the…
This hardware manual covers the ACH580-04 drive module used in ABB HVAC inverters. It includes safety information, installation planning, electrical wiring, and detailed maintenance instructions for units rated between 250 and 500 kW.
Key sections include safety precautions, cabinet installation, electrical installation planning, wiring diagrams, startup procedures, fault tracking, and technical data such as rated power, voltage range, and protection class. The document also provides checklists and recommended torque values for fasteners. This manual is written in Chinese.
